Midi lathes are excellent tools, but to get the most out of them they need a custom built stand that places the spindle at the right height for the user. The one I build is made from hard maple, and is designed to take up as little space as possible.

Making a lathe stand (part 1)

February 25, 2015

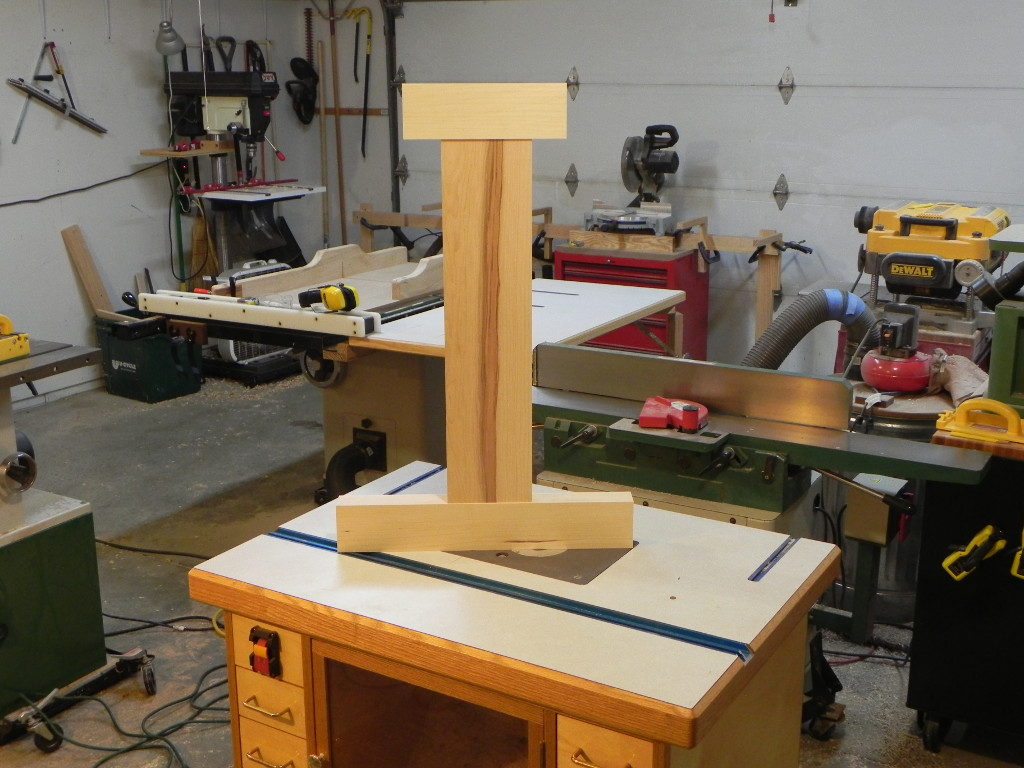

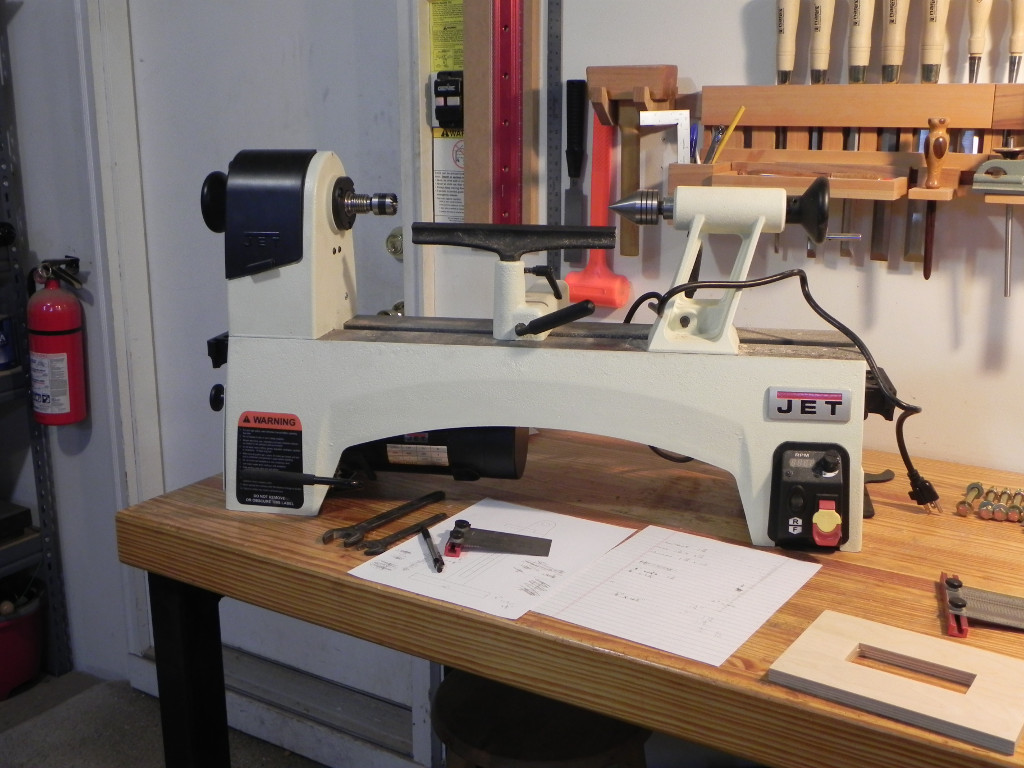

Last weekend I acquired a Jet 1221VS. While I’ve already played with it quite a bit, I need to build a proper stand for it before I can do any real work. Since floor space it at a premium in my shop, and I wanted the stand to be quick to build, I decided to make a trestle style stand for it.  I’m going to use 8/4 hard maple for the stand, since I have a lot of it on hand, and it’s a strong durable wood. Since I might buy a bed extension at some point in the future, I decided to keep the stand modular. Thus, the stand will be held together with bolts like a  bed is.

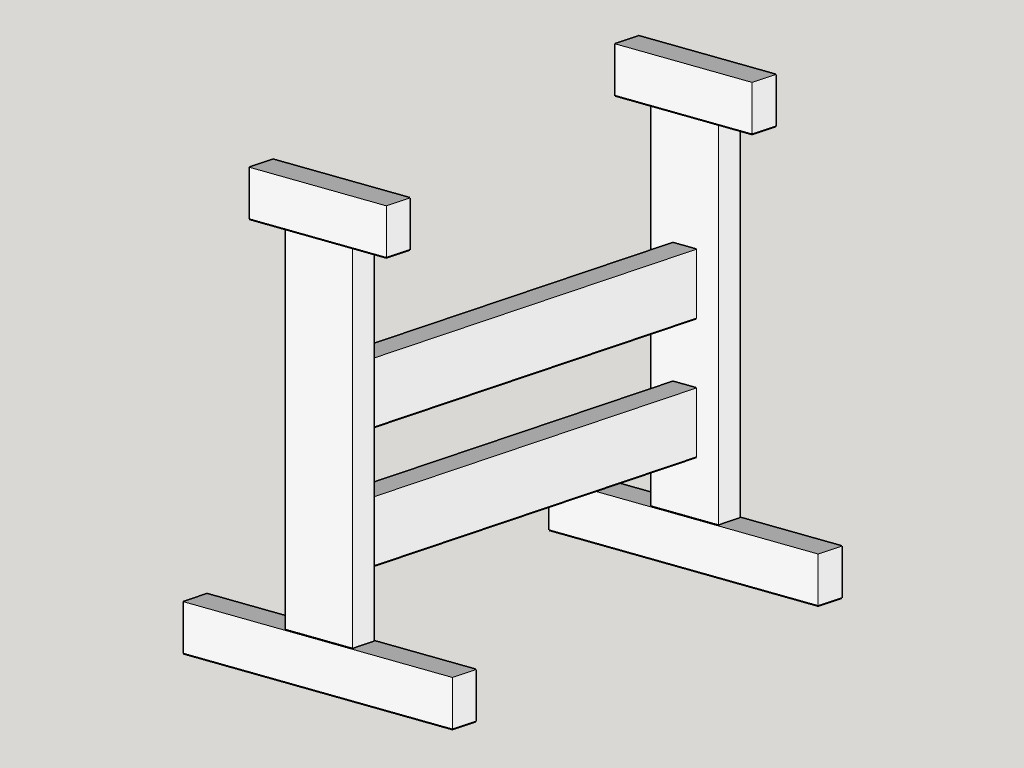

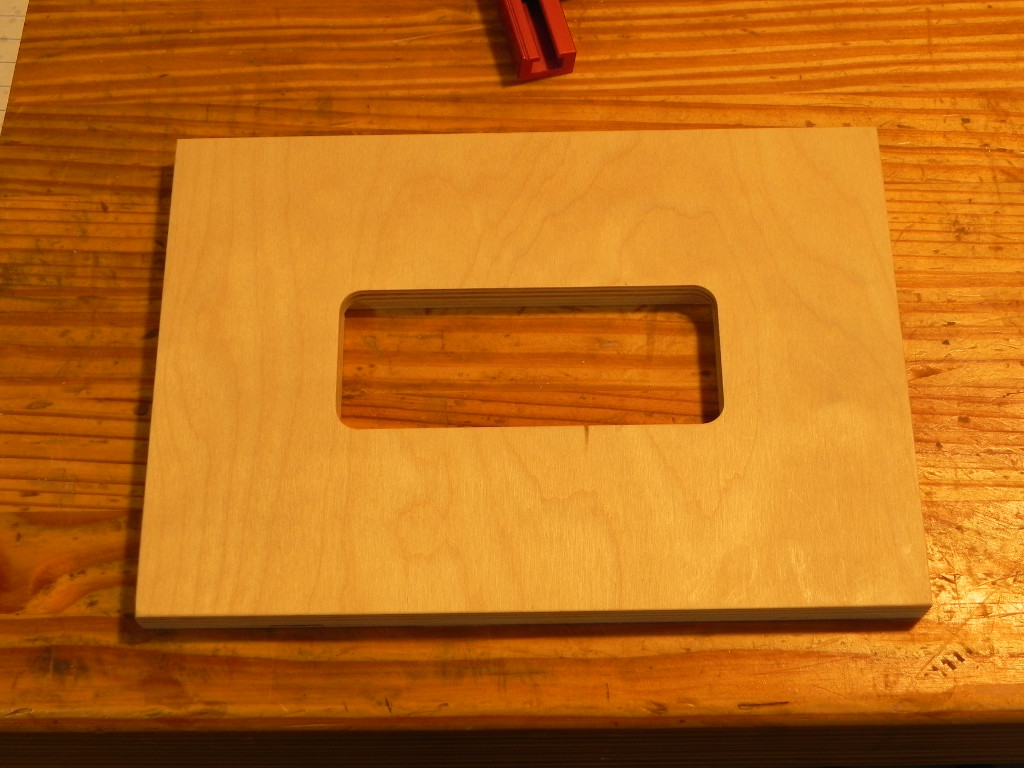

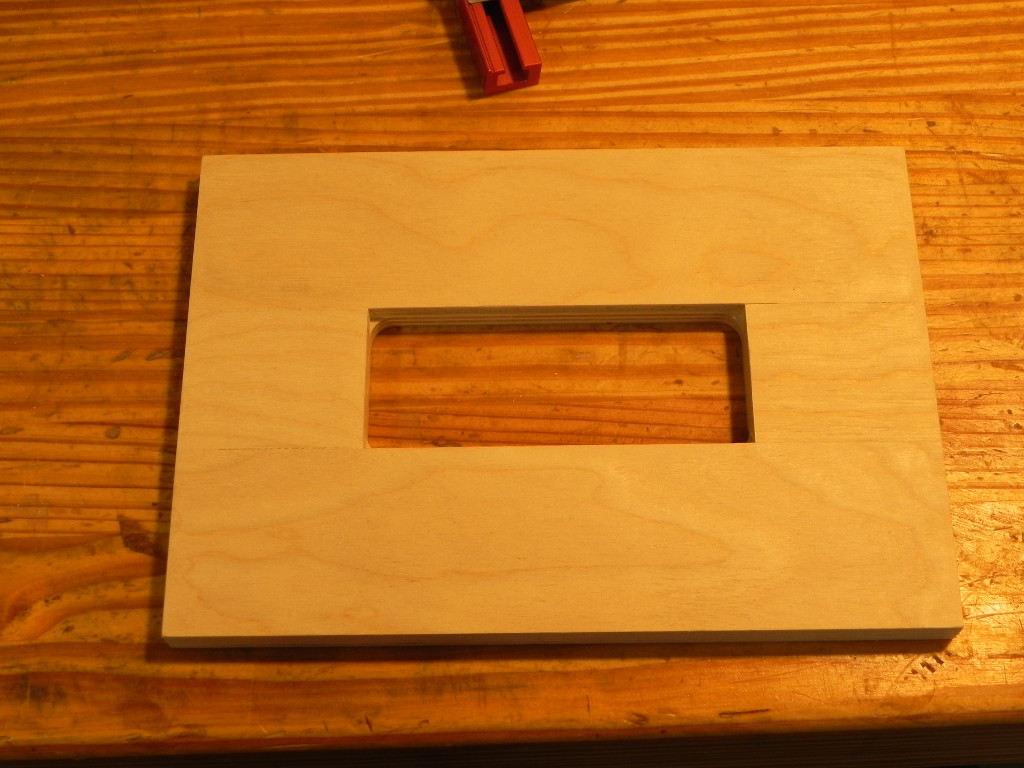

Thanks to mother nature keeping the temperature in my shop in the low 30’s, the only things I’ve gotten done so far is dimensioning the stock, and making the mortise template shown below. Thankfully it’s supposed to warm up over the next few days, so I should be able to make some substantial progress.



Posted in: Power Tool Woodworking
Part of the Project

Making a lathe stand (part 2)

March 3, 2015

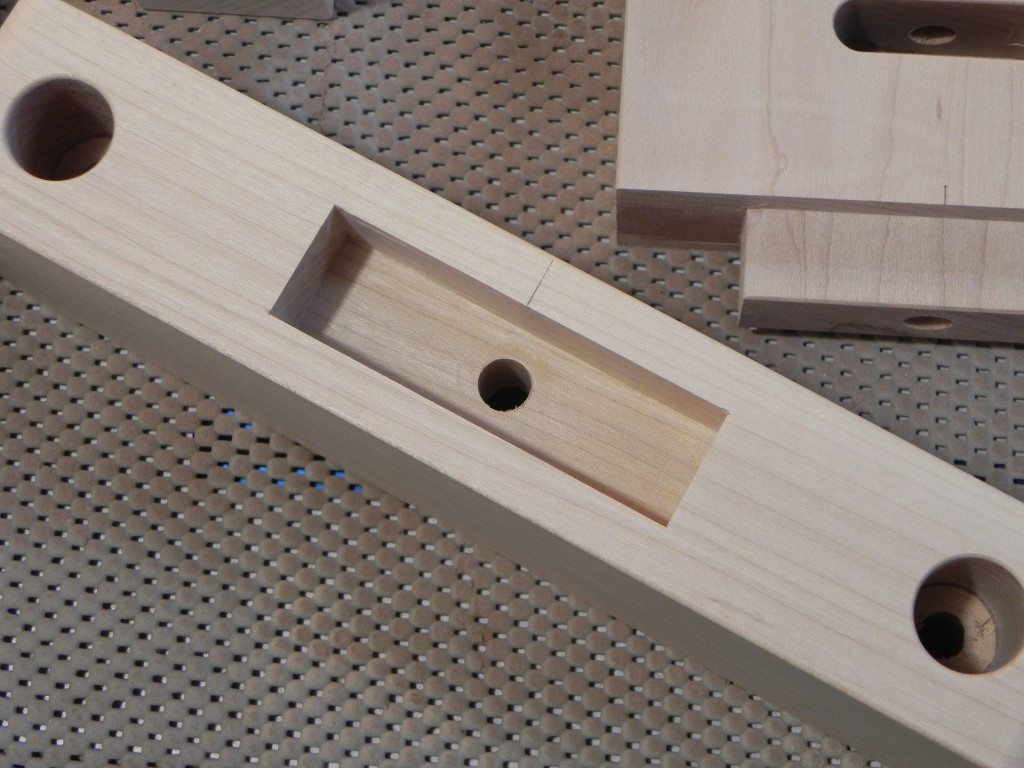

Despite mother nature and old man winters concerted attempts to keep me out of the shop, I was able to finish the lathe stand this weekend. Despite some minor issue during the build, I’m very happy with how it turned out. As you can see below, it’s just 8 boards held together with bolts and dry mortise and tenon joinery.

parts

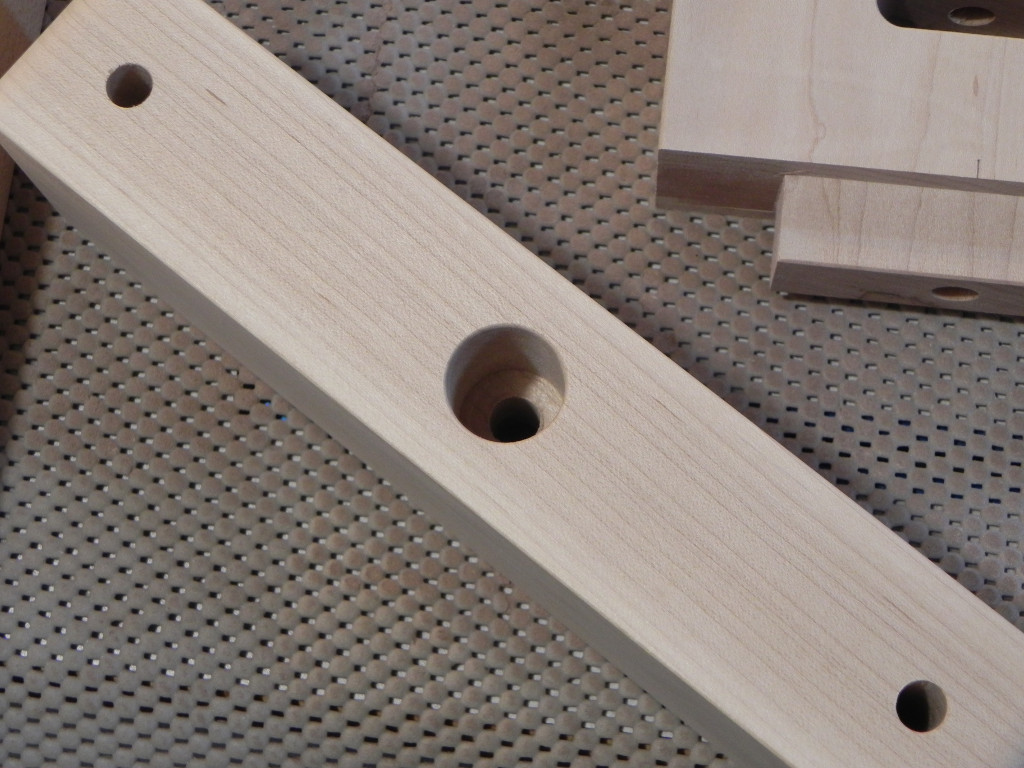

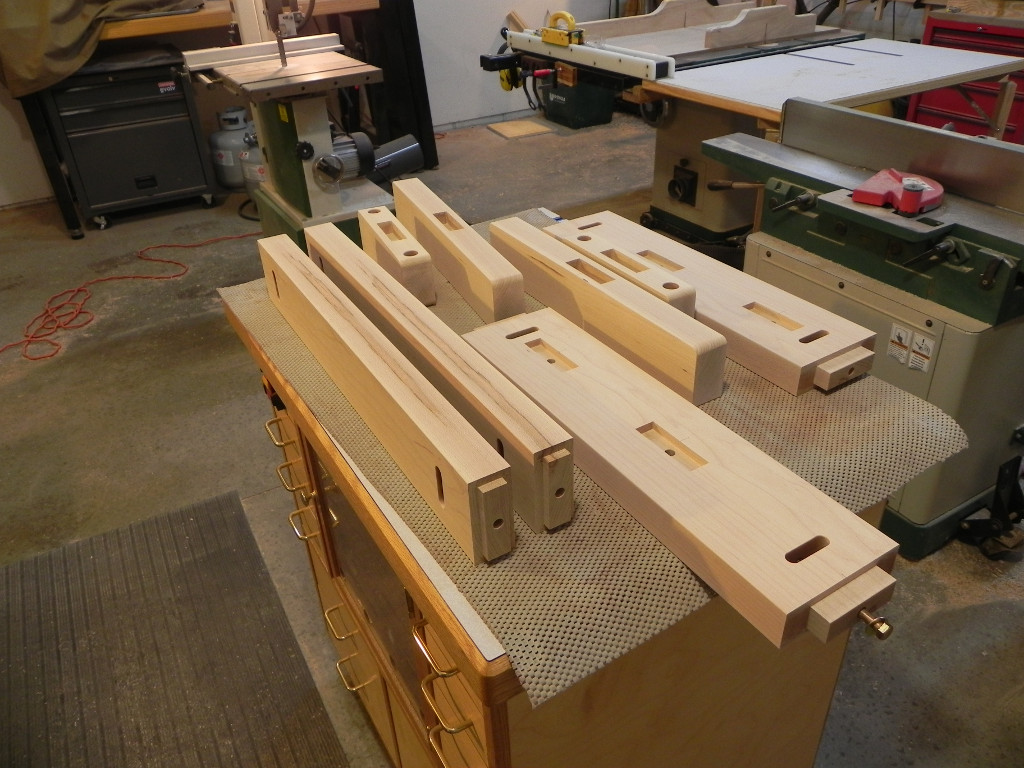

parts ready for assembly

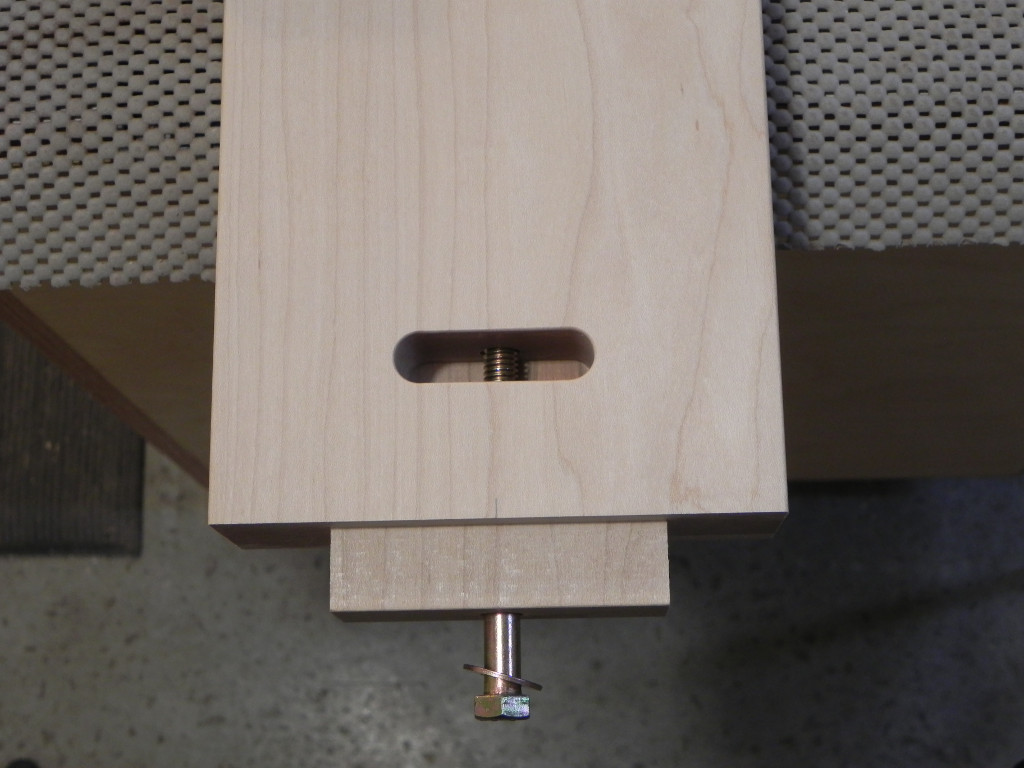

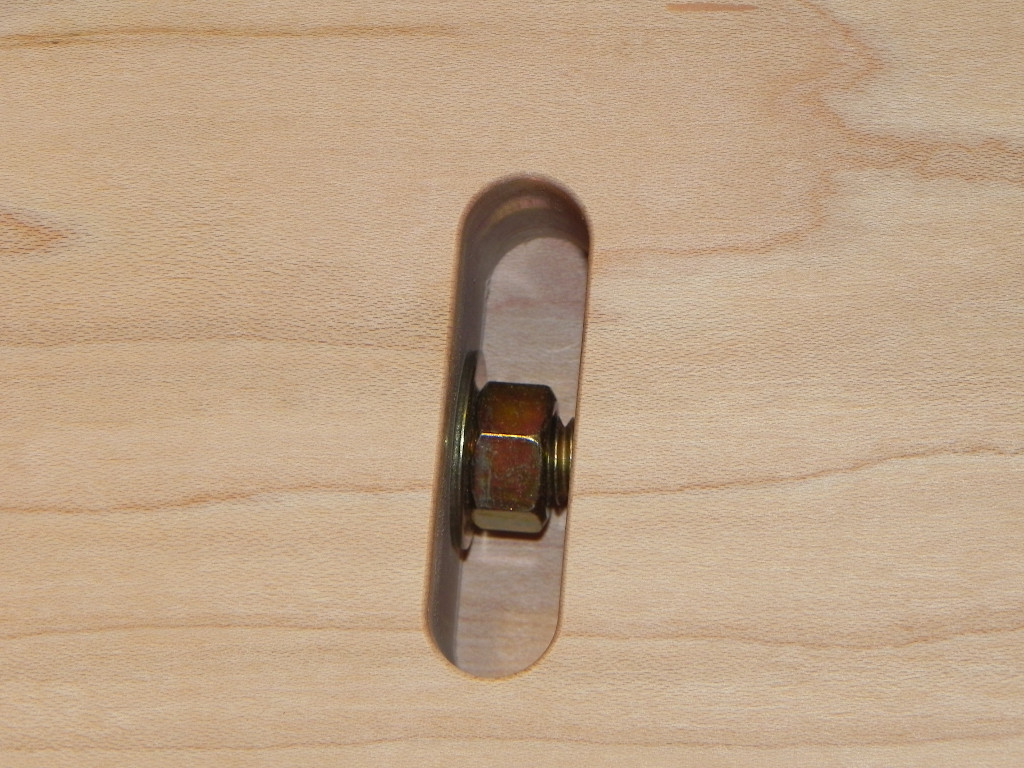

Instead of using cross dowels to hold the parts together like you would typically find in bed frame construction, I decided to use a slot and a standard bolt. The primary reason for this, was because I couldn’t find large cross dowels locally, and everything online seemed overly expensive. If I ever get around to making a bed, I’m probably going to use this method. Besides being cheap, it offers a lot more options with regards to bolt size and composition.


Continue Reading…
