curvy legs

April 19, 2012

It took 3 weeks, but the legs are done except for finish sanding. The final step of making the legs was the longest, and the scariest. First I had to make a template for pattern routing, out of 1/4″ plywood. As you would expect it only took about an hour to make. One thing you will notice, is the template has a reference surface made from scrap SYP. It was needed so I could reference off the back miter edge.

routing template

routing template

To shape the legs, I double stick taped the template to the legs, and then rough cut around the template at the bandsaw. The scariest part was next. Maybe scary is the wrong word, but pattern routing 1-5/8″ thick Jatoba  is not something to take lightly. It was loud, slow going and more than a little nerve racking, but I got through it using a Whiteside Down spiral flush trim bit. After I finished routing all 8 legs, I took them over to the oscillating spindle sander to smooth out any imperfections.  After some hand sanding, it was back to the router table to round over the front edges.  The round over  has a large 3/4″ radius so it it had to be done in several passes. While as you can see the leg lookes beautiful, all that time spent bent over the router table really put the kibosh on my lower back, so it’s going to be a few days till I can get back into the shop.

Now that's a nice Leg

Now that’s a nice Leg

Posted in: Power Tool Woodworking
Part of the Project

leg jig part 2

April 11, 2012

What was I thinking, it took a lot longer to make the mortises than I thought it would. It took almost a full week of evenings to make all 48 mortises, but they are done. Thankfully the second part of the leg making jig made making the mortises a low stress process. All it really is is a piece of 1/4″ plywood with slots milled into it at specific locations. When a leg is mounted into the bottom half of the jig, I screwed the plywood to it. The template bushing rides in the slots, so to cut the mortises all I had to do was take a pass, lower the bit and repeat until I reached full depth. The process it pretty strait forward, so I’ll let the photos explain the rest.

Posted in: Power Tool Woodworking
Part of the Project

leg jig part 1

April 2, 2012

The first part I decided to work on for the end tables, was the legs. They are the most visually dominant parts, and one of the most complex to make. Since they are set set at 45 degrees to to the aprons, the require massive chamfers cut down their back. As you can see below, the chamfers also have mortises cut into them. These two design features posed an interesting challenge, how do I cut chamfers outside the capacity of my table saw, and how do I accurately mill mortises into them.

legDetail
Continue Reading…

Posted in: Power Tool Woodworking
Part of the Project

The end table saga

March 22, 2012

Now that I’m done making picture frames for a while, it’s time to start my big spring/summer project. I have wanted some nice end tables for a while now, so over Thanksgiving, I wrapped up the design shown below. They have a slight Asian flare like some of my other pieces, and will be made from one of my favorite woods Jatoba. It’s very hard (2350 on the Janka scale) and thus really hard on tooling, but over time it turns a beautiful dark reddish-brown, and I think that more than makes up for shorter tool life.

I plan on pushing my woodworking limits on this project in a two ways.  The first one is with the brawer/drawer front, I’m going to try and make it out of one board. I’m not sure if this method has a specific name, but it looks beautiful because the grain is continuous between the apron & drawer front. The second design challenge are the legs. They are heavily curved, and more importantly at a 45 degree angle to the aprons. I’m still not sure exactly how I’m going to make these, most likely i will need to use a fairly complicated jig.

Sketchup Rendering

Sketchup Rendering

Posted in: Power Tool Woodworking
Part of the Project

Words to live by

March 13, 2012

I finished off the last picture frame of the winter over the weekend. You’re probably wondering why I’ve maid so frames, and that question has two answers. The first one is strait forward, I got tired of looking at the plain walls of my house. The second is because in my opinion miter joints are the hardest joint to get right, found in regular woodworking. My first attempts looked horrible, but after a little reading I found a method that works for me every time. To make perfect miters you need two things a miter sled, and some clamps designed for miters.

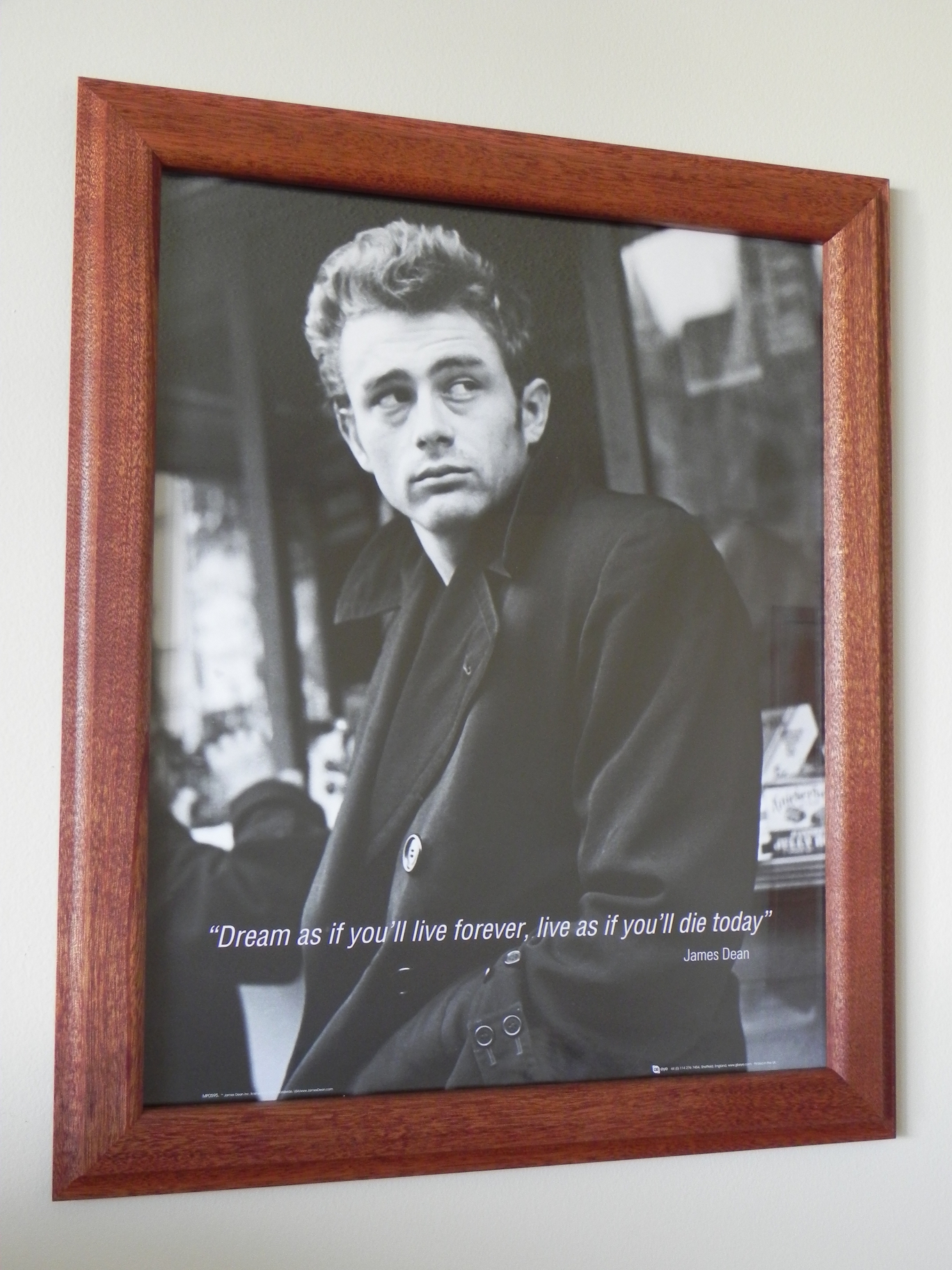

This frame holds an inspirational poster that has come to mean a lot to me.  It’s made from African Mahogany, and as with all the other frames I’ve made, it’s finished with Danish Oil and wax.

James Dean

Words to live by.
